Switchable PDLC privacy glass places a polymer-dispersed liquid-crystal layer within a laminated glass assembly.
Base-glass reference: 5 + 5, 6 + 6, 8 + 8 or 10 + 10 mm plies.
Published size reference: Up to 1800 × 3500 mm, subject to model and film review.
Operating reference: A previous specification lists 45 V AC.
Send drawings, quantities and destination details for a project quotation.
Base-glass reference: 5 + 5, 6 + 6, 8 + 8 or 10 + 10 mm plies. These values exclude the full film and bonding system; confirm finished thickness.
Published size reference: Up to 1800 × 3500 mm, subject to model and film review. Confirm current availability, electrode layout and handling limits.
Operating reference: A previous specification lists 45 V AC. Use only the matched controller and current product datasheet; do not connect the panel directly to mains.
Appearance: Clearer energised state; translucent privacy state for the selected model. Confirm switching mode, residual haze and viewing conditions on a sample.
Connections: Busbar position, cable exit and control zones. Coordinate concealed wiring, access and the frame before manufacture.

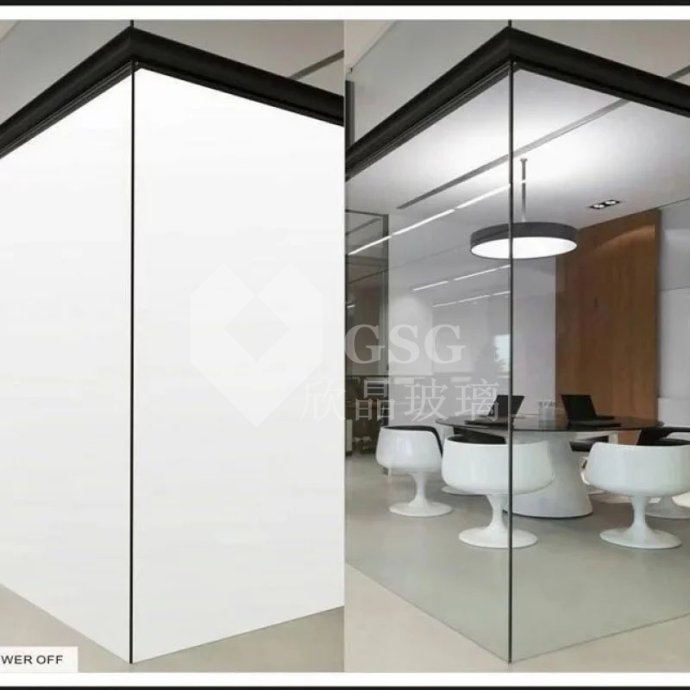

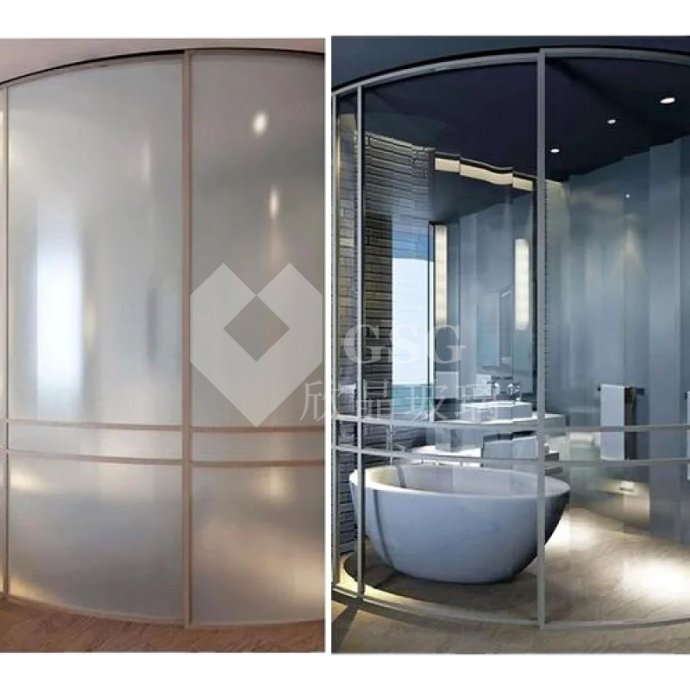

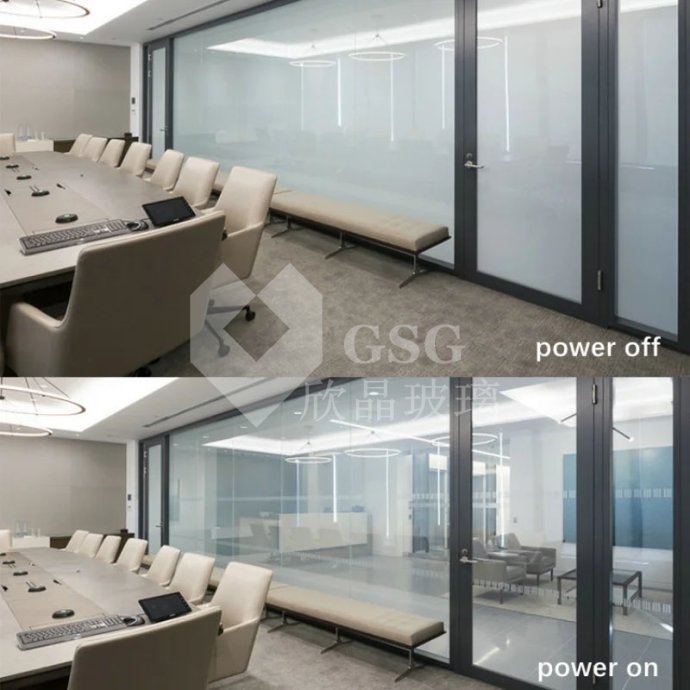

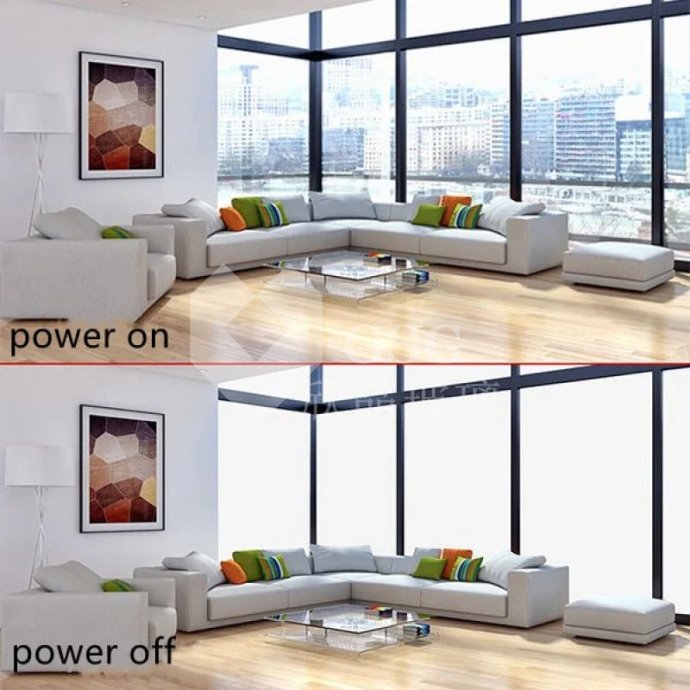

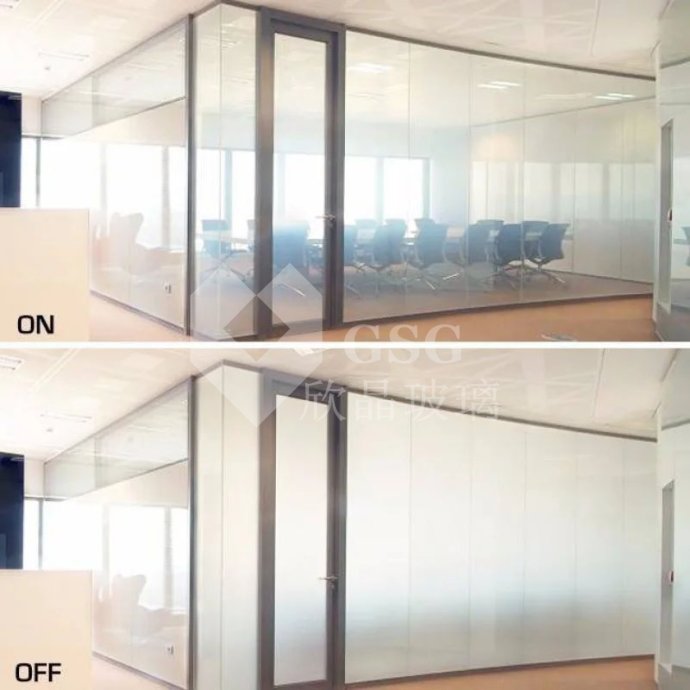

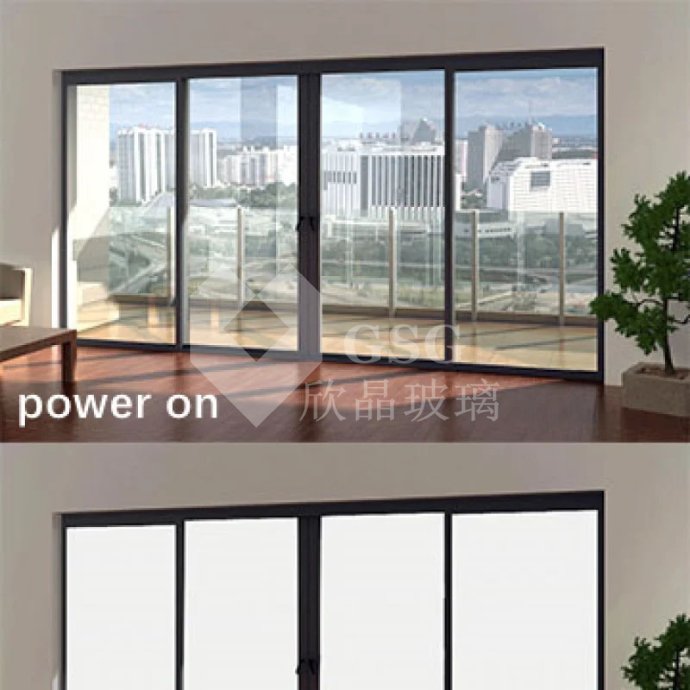

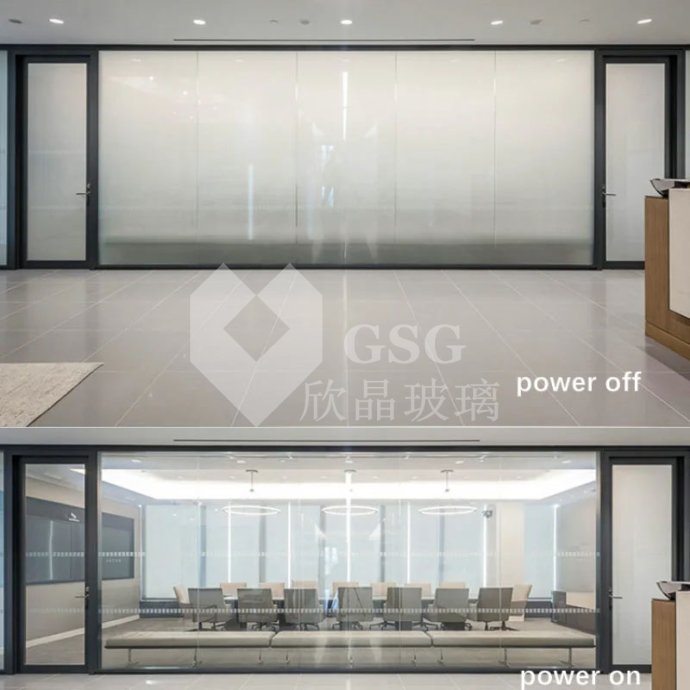

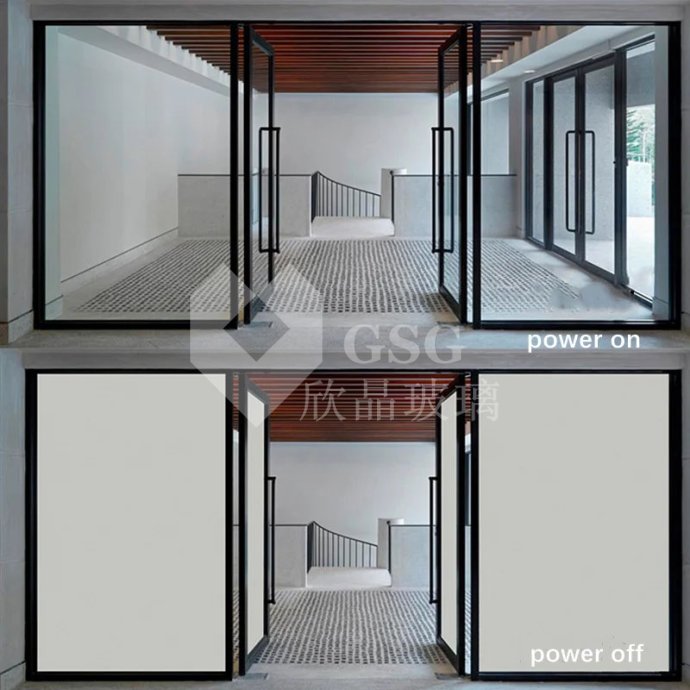

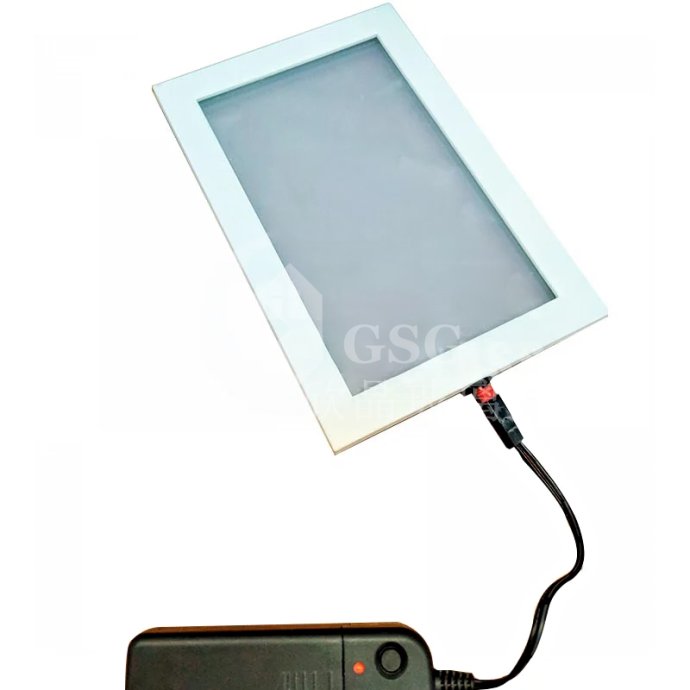

Switchable PDLC privacy glass places a polymer-dispersed liquid-crystal layer within a laminated glass assembly. With the matched control system, the appearance changes between a clearer state and a light-scattering translucent state. Globalstar Glass discusses smart-glass enquiries for partition and interior-system buyers around the panel configuration, electrical interface and required privacy appearance.
Illustrative product concept and material details; not a completed-project photograph or test evidence. Final construction follows the approved order.
Examples support quotation discussions. Confirm availability, production feasibility and the final specification before ordering.
| Item | Reference specification | What to confirm |
|---|---|---|
| Base-glass reference | 5 + 5, 6 + 6, 8 + 8 or 10 + 10 mm plies | These values exclude the full film and bonding system; confirm finished thickness. |
| Published size reference | Up to 1800 × 3500 mm, subject to model and film review | Confirm current availability, electrode layout and handling limits. |
| Operating reference | A previous specification lists 45 V AC | Use only the matched controller and current product datasheet; do not connect the panel directly to mains. |
| Appearance | Clearer energised state; translucent privacy state for the selected model | Confirm switching mode, residual haze and viewing conditions on a sample. |
| Connections | Busbar position, cable exit and control zones | Coordinate concealed wiring, access and the frame before manufacture. |
| Performance and environment | Optical, power, temperature and exposure data by model | Request current figures; privacy glass is not automatically blackout or solar-control glazing. |
The translucent state scatters light and can obscure a view, while still transmitting light. Lighting, distance and silhouettes affect the perceived privacy. The clearer state can retain some haze. Review a sample or mock-up under representative conditions rather than expecting ordinary clear-glass appearance in every viewing angle.
Specify panel dimensions, the location of the busbar and cable exit, the control arrangement and whether panels switch together or independently. Use the matched transformer/controller and product instructions. Qualified electrical installation and accessible service connections should be planned with the glazing frame.
Confirm holes, notches and edge details before manufacture. The functional film and electrical edge treatments require a defined production route; completed panels should not be cut on site. Review wet-area suitability, edge protection and sealing compatibility for the selected model instead of assuming unrestricted exterior or bathroom use.
Switchable glass is scheduled by film availability, panel size, electrical zoning, lamination route and functional testing. The factory lamination operation supports configuration review, while the actual smart-glass supply route, model and lead time are confirmed for the order. General lamination output does not define switching-product capacity.
Protect the laminate edges, busbars and cable tails. Label control zones and panel orientation, and agree how controllers and accessories are packed and identified. Include functional testing and electrical documentation requirements with the order.
Send the glass build-up, dimensions, quantity, installation environment, required switching state, controller input requirements, zoning, cable positions, privacy expectations and destination.
Send your specifications to Globalstar Glass for technical and commercial review.
Related products: PVB laminated glass and decorative fabric laminated glass.
No. PDLC privacy primarily changes light scattering. Ask for model-specific light transmission and review the required room conditions.
Not necessarily. Residual haze and viewing-angle effects vary by product and should be checked on a sample.
No. It is a reference from the earlier specification. Confirm the actual model and matched controller before installation.
Do not plan site cutting or drilling. Complete the required geometry and electrical details before production.
Only if the selected product, electrical system and installation details are approved for those conditions.
Explore switchable PDLC privacy glass. Review glass build-ups, panel size, controller requirements, clear and translucent states and quotation details.
