Globalstar Laminated Glass:
A) Two or three layers of glass "sandwiched" in a clear or colored PVB interlayer,Laminated glass is a type of safety glass that reconciles the aesthetic benefits of glass with real safety concerns;Provides superior protection against glass shattering, as well as harmful sun rays and disruptive noise levels.
B) Due to the adhesive properties of PVB, care must be taken to prevent unwanted particles from adhering to the PVB during the bonding process.
Category: PVB laminated glass, SGP laminated glass, colored laminated glass, bulletproof glass, laminated glass with metal mesh or fabric laminate, dimming glass, tempered laminated glass

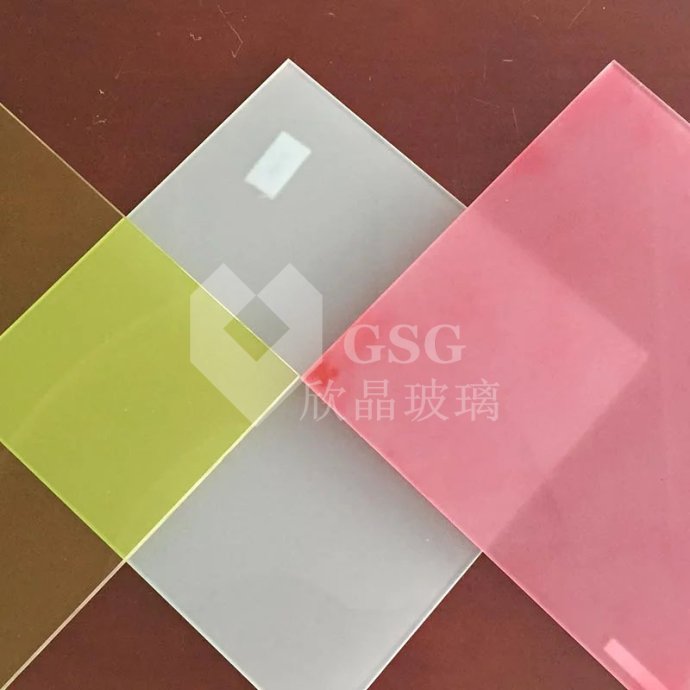

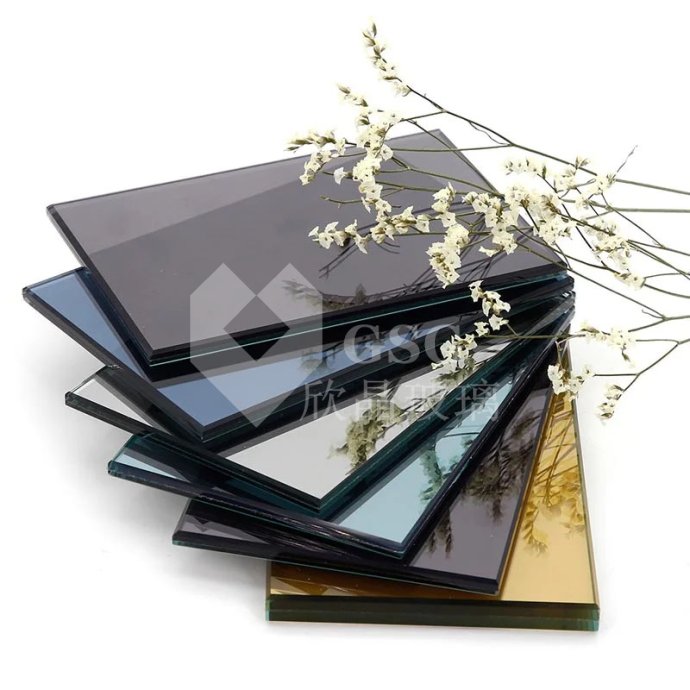

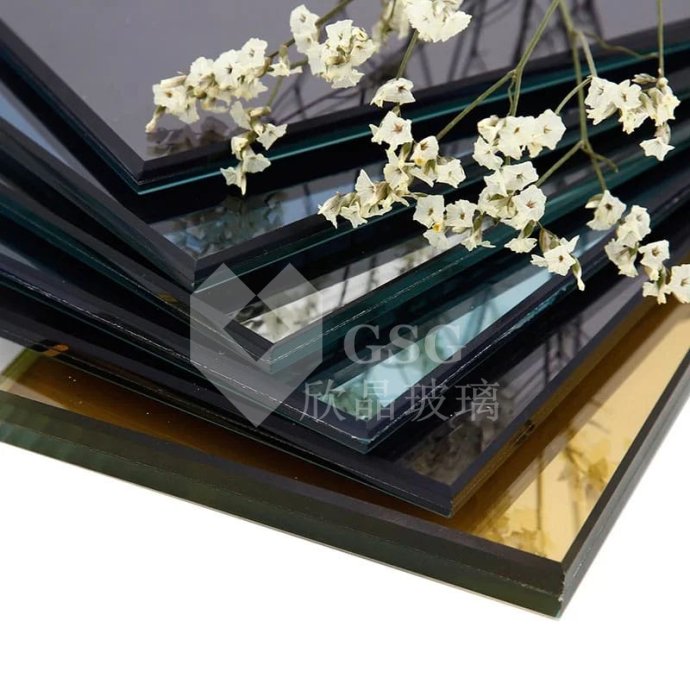

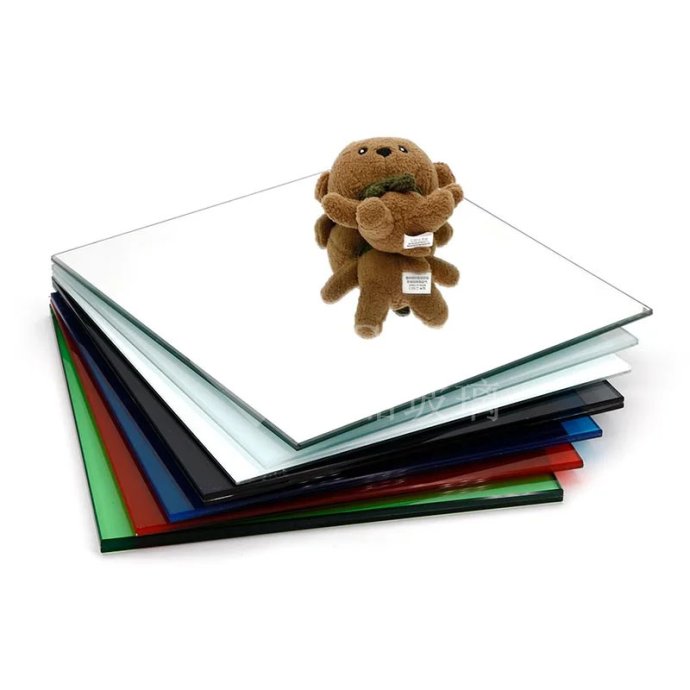

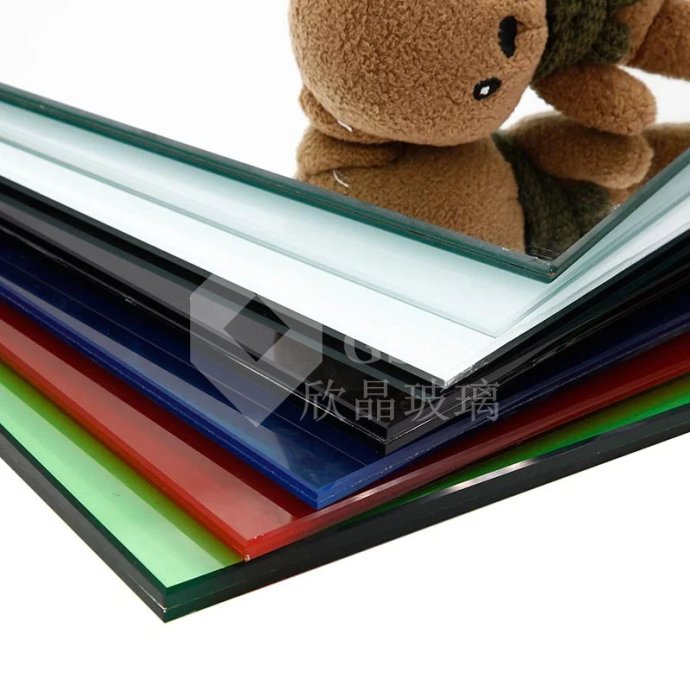

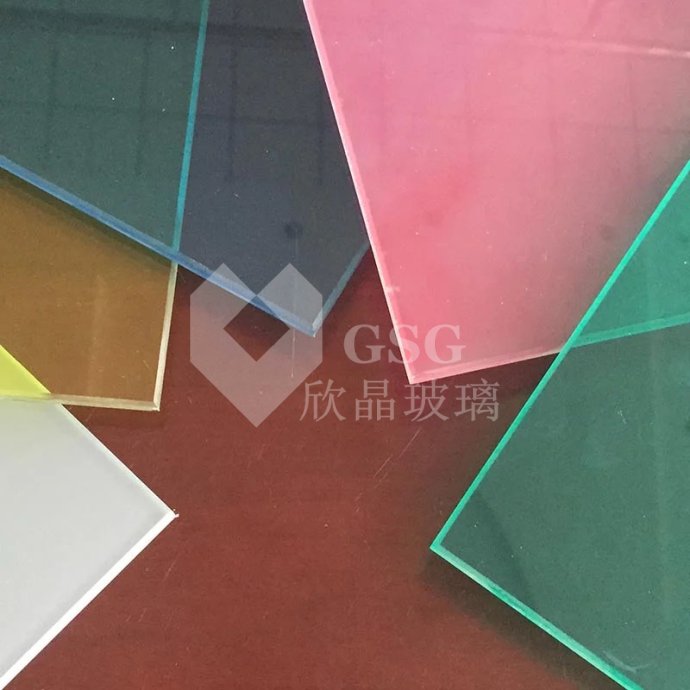

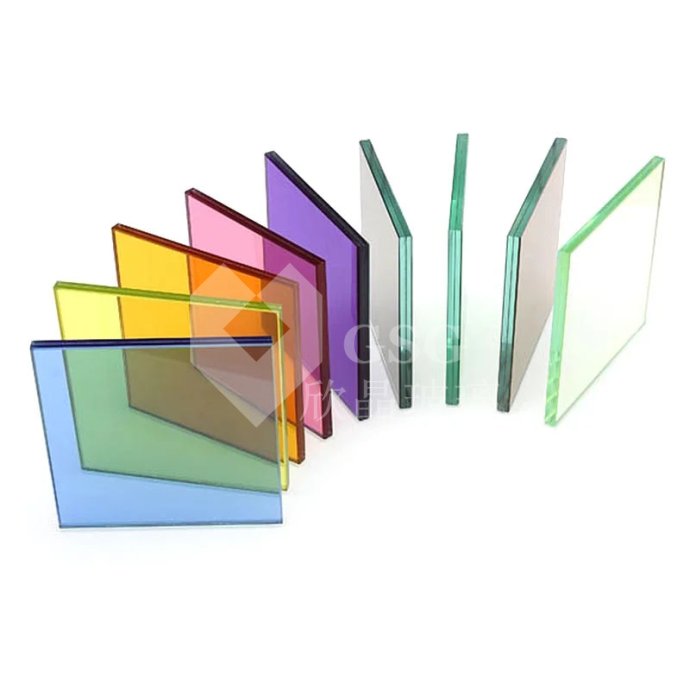

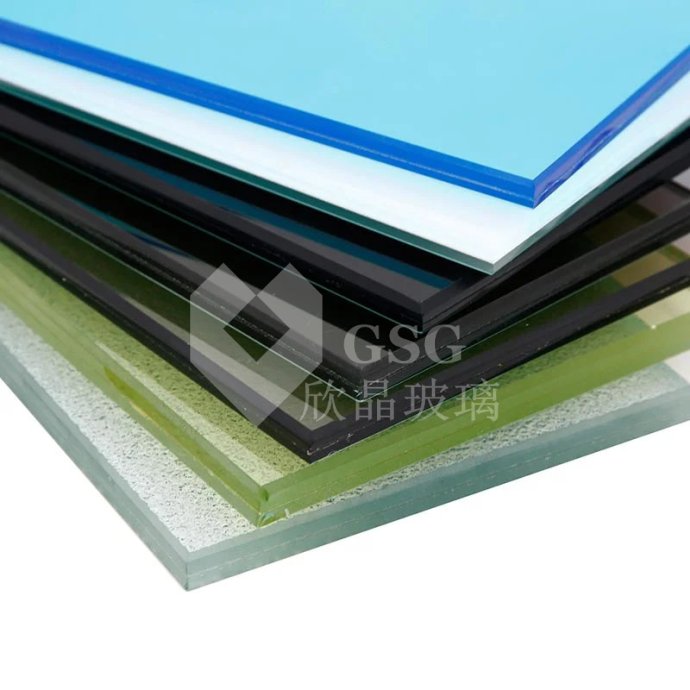

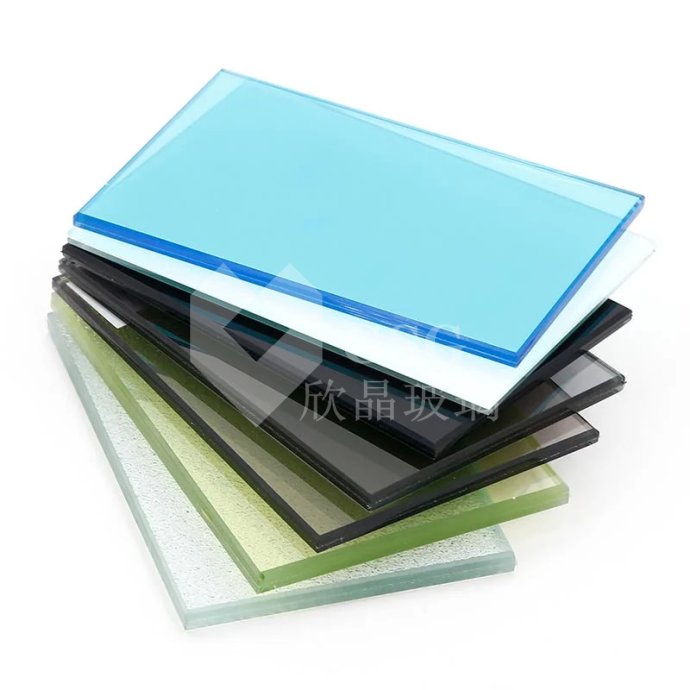

Different colors of colored laminated glass, such as white, white translucent, red, blue, green, bronze, black, gray, etc. . .
There are two main types of colored laminated glass. One is clear glass laminated with colored PVB interlayer.
The other is colored glass laminated with transparent PVB. Colored laminated glass mostly uses colored PVB interlayer to laminate clear float glass or clear tempered glass.
Glass thickness
A) Total thickness: 6.38-17.52mm
B) Glass thickness details:
3+0.38PVB+3mm；4+0.38PVB+3mm；5+0.38PVB+5mm；6+0.38PVB+6mm；
3+0.76PVB+4mm；4+0.76PVB+4mm；5+0.76PVB+5mm；6+0.76PVB+6mm etc.
8+0.76PVB+8+0.76PVB+8MM
Glass materials: clear float glass, colored float glass, coated glass, tempered glass, mirror, acid-washed glass, etc.
Glass color
A) Blue: sky blue, lake blue, Ford blue, dark blue, royal blue;
B) Bronze: Dark Bronze, European Bronze;
C) Transparency;
D) Green: dark green, F green;
E) Gray: Dark Gray, European Gray, Mist Gray, Century Gray;
F) Pink, etc.
PVB color
A) Milky white
B) F Green
C) Light blue
D) Bronze
E) Light gray
F) Dark gray
G) Ocean Blue, etc.
PVB thickness: 0.38mm, 0.76mm, 1.14mm, 1.52mm, etc.
Size: 2440*1830mm, 3300*2134mm, etc.
Advantages of laminated glass:
A) When broken, it will hold together tightly. PVB interlayer makes the glass bonded
B) Cyclone resistance
C) Super strong UV blocking
D) Excellent sound absorption performance
E) Low visible distortion
application
A) External use of windows, doors, storefronts of offices, houses, shops, etc.
B) Indoor glass screens, partitions, railings, etc.
C) Shop windows, display cabinets, display racks, etc.
D) Furniture, tabletops, photo frames, etc.
| Laminated glass thickness performance grade | |||
| Glass properties | Thickness (mm) | UV transmittance (%) | LT (%) |
| 3+0.38+3mm transparent | 6.38mm | 5 | 89 |
| 6+0.38+6mm transparent | 12.38mm | 3 | 86 |
| 6+0.38+6mm coating | 12.38mm | 0.5 | 22 |
| Require | Effect | Glass composition |
| Sunlight control | Energy saving | 2ply+1PVB interlayer |
| UV Removal | ||
| Voice Control | Reduce noise | 2ply+1PVB interlayer |
| Safety | Reduce the risk of injury | 2ply+2PVB interlayer |
| Anti-terrorist protection | 2ply+4-6PVB interlayer | |
| Protection | Forced door protection | 3ply+4PVB interlayer |
| bulletproof | Case Analysis | |
| explosion-proof | 4ply+PVB interlayer |
