Globalstar laminated glass

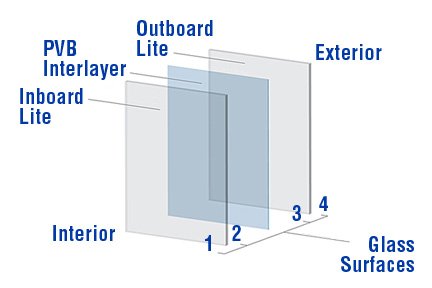

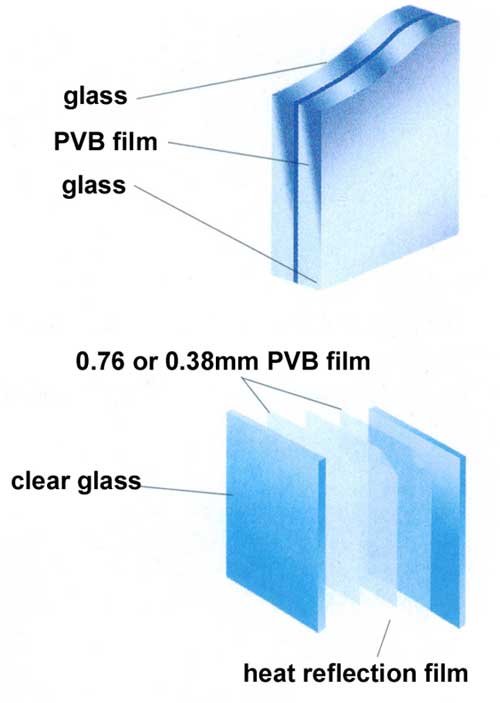

A) Laminated glass is made of two or three layers of glass sandwiched with a clear or colored PVB interlayer, combining aesthetics and safety.
Provides superior protection against shattered glass and effectively blocks harmful sunlight and noise.
B) Due to the adhesive properties of PVB, careful precautions were taken during the bonding process to prevent unwanted particles from attaching to the PVB.
Categories: PVB laminated glass, SGP laminated glass, colored laminated glass, bulletproof glass, metal mesh or fabric laminated glass, dimming glass, tempered laminated glass
Glass thickness
A) Total thickness: 6.38-17.52mm
B) Glass thickness details:
3+0.38PVB+3mm;4+0.38PVB+3mm;5+0.38PVB+5mm;6+0.38PVB+6mm;
3+0.76PVB+4mm;4+0.76PVB+4mm;5+0.76PVB+5mm;6+0.76PVB+6mm etc.

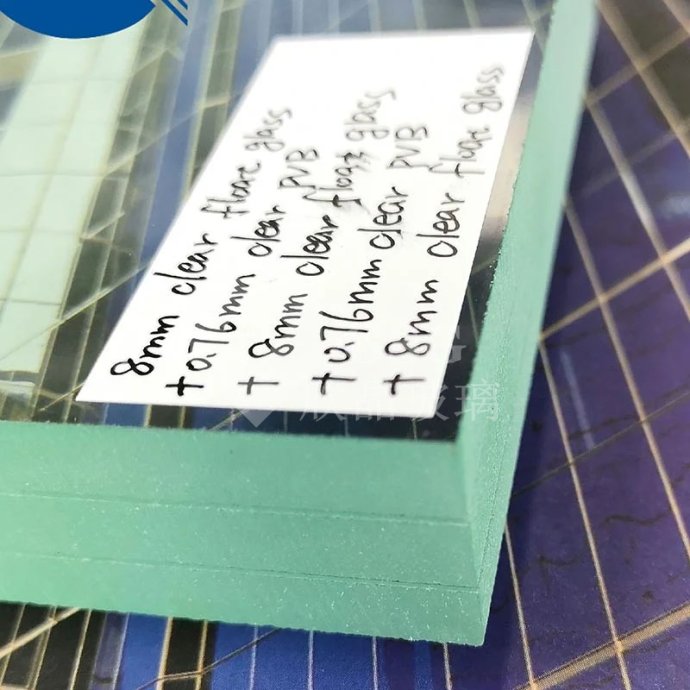

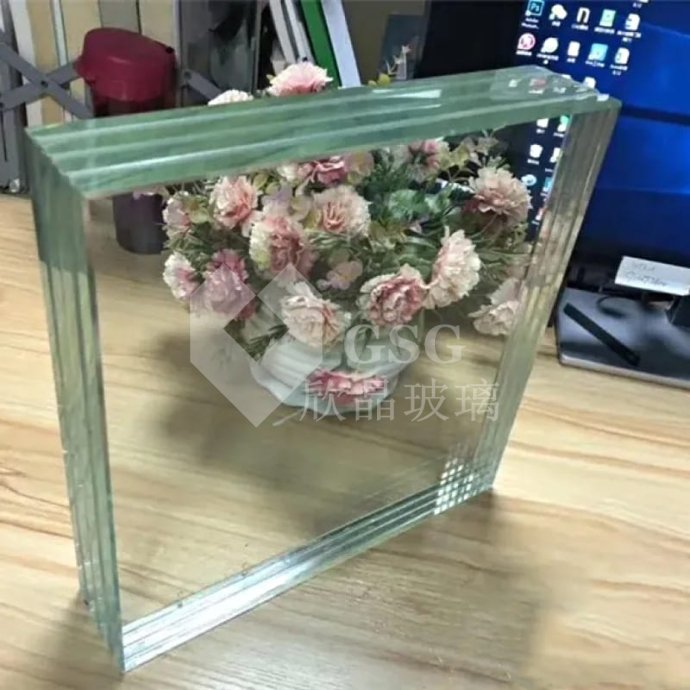

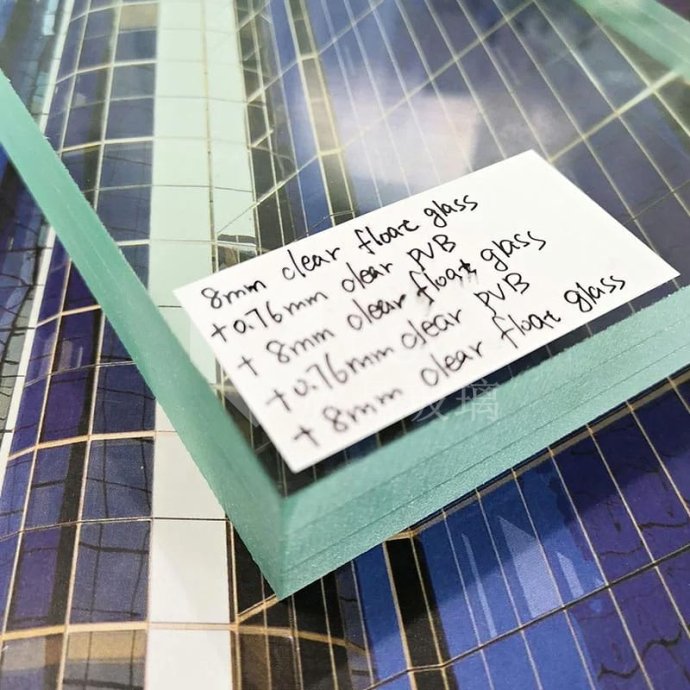

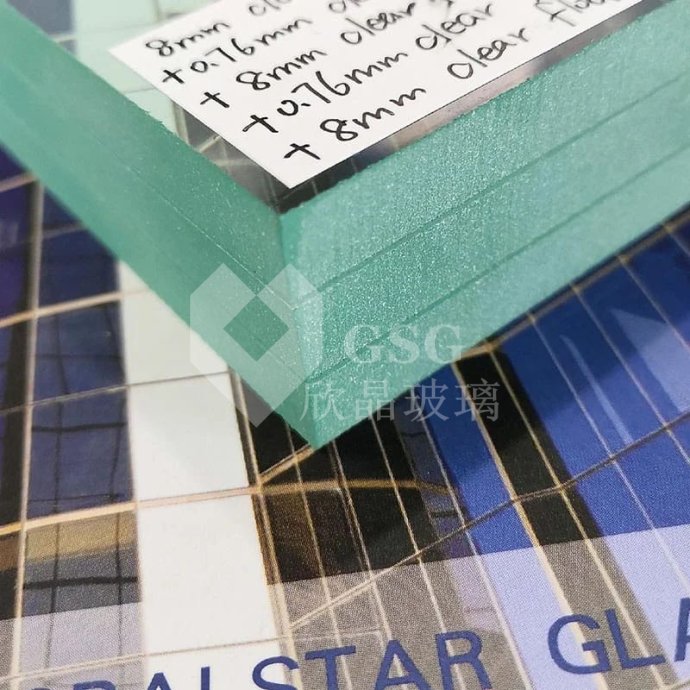

8+0.76PVB+8+0.76PVB+8MM
Glass material: clear float glass, tinted float glass, reflective glass, tempered glass, mirror, acid-etched glass, etc.
Glass color
A) Blue: sky blue, lake blue, Ford blue, dark blue, royal blue;
B) Bronze: Dark Bronze, European Bronze;
C) transparency;
D) Green: dark green, French green;
E) Gray: Dark Gray, European Gray, Mist Gray, Century Gray;
F) Pink, etc.
PVB color
A) Milky white
B) French Green
C) Light blue
D) Bronze
E) Light gray
F) Dark gray
G) Sea blue, etc.
PVB thickness: 0.38mm, 0.76mm, 1.14mm, 1.52mm, etc.
Size: 2440*1830mm, 3300*2134mm, etc.
Advantage
A) Shatter-Remains Intact. PVB interlayer allows the glass to remain bonded even after shattering, resulting in a distinctive spiderweb-like crack pattern.
B) Cyclone resistance
C) Excellent UV blocking performance
D) Excellent sound insulation performance
E) Low visual distortion
Application
A) External windows, doors, storefronts of offices, residences, shops, etc.

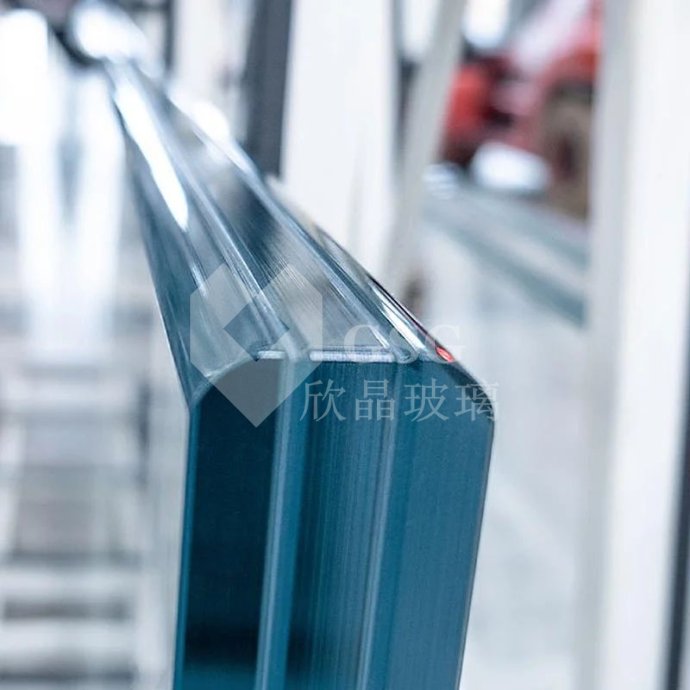

B) Indoor glass screens, partitions, railings, etc.
C) Shop windows, display cabinets, display racks, etc.
D) Furniture, tabletops, photo frames, etc.
| Laminated glass thickness performance grade | |||
| Glass properties | Thickness (mm) | UV transmittance (%) | LT (%) |
| 3+0.38+3mm transparent | 6.38mm | 5 | 89 |
| 6+0.38+6mm transparent | 12.38mm | 3 | 86 |
| 6+0.38+6mm coating | 12.38mm | 0.5 | 22 |
| Require | Effect | Glass composition |
| Sunlight control | Energy saving | 2ply+1PVB interlayer |
| UV Removal | ||
| Voice Control | Reduce noise | 2ply+1PVB interlayer |
| Safety | Reduce the risk of injury | 2ply+2PVB interlayer |
| Anti-terrorist protection | 2ply+4-6PVB interlayer | |
| Protection | Forced door protection | 3ply+4PVB interlayer |
| bulletproof | Case Analysis | |
| explosion-proof | 4ply+PVB interlayer |
Colored laminated glass comes in a variety of colors, such as white, white translucent, red, blue, green, bronze, black, gray, etc.
There are two main types of colored laminated glass: one is transparent glass with colored PVB interlayer,
The other is colored glass sandwiched with transparent PVB interlayer. Most colored laminated glass uses colored PVB interlayer sandwiched with clear float glass or clear tempered glass.
![]()
![]()
The company is committed to becoming a global leader in energy-efficient and safe glass manufacturing, contributing to a happier life for humanity and making the world a better place.
