Back-painted glass combines a glass viewing face with an opaque colour layer on the reverse side.
Thickness references: 4 / 5 / 6 / 8 / 10 / 12 mm.
Sheet examples: 1830 × 2440; 2140 × 3300 mm.
Finished panel examples: 600 × 1200 or 1000 × 2000 mm.
Send drawings, quantities and destination details for a project quotation.
Thickness references: 4 / 5 / 6 / 8 / 10 / 12 mm. Choose for the application, support and coating process.
Sheet examples: 1830 × 2440; 2140 × 3300 mm. Confirm available substrate and coating dimensions.
Finished panel examples: 600 × 1200 or 1000 × 2000 mm. Final sizes and cut-outs follow approved drawings.

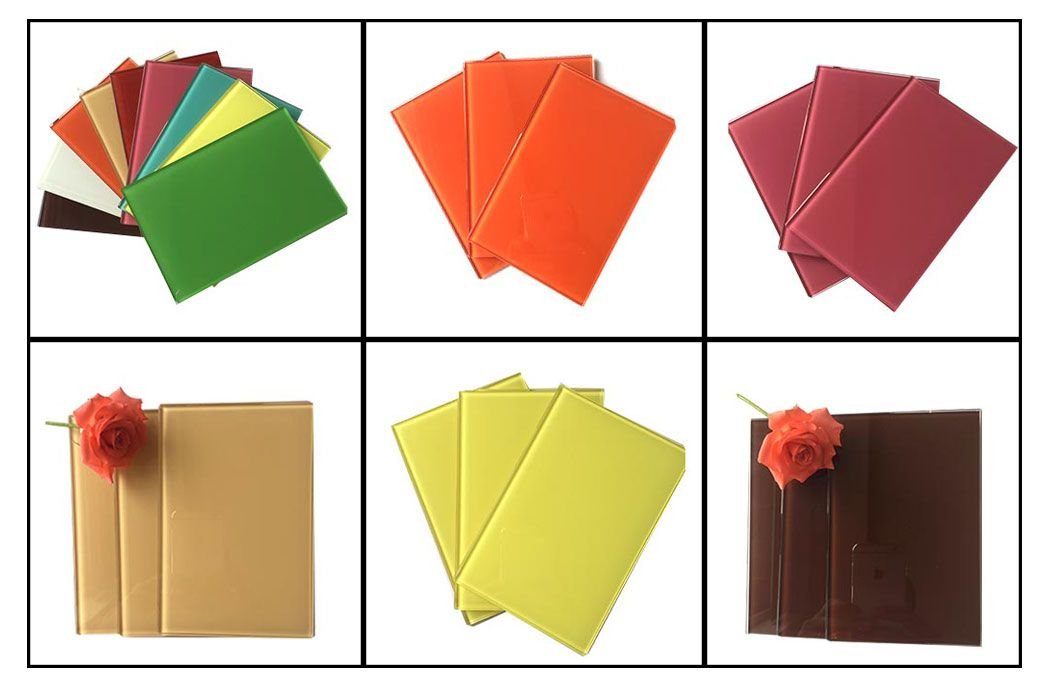

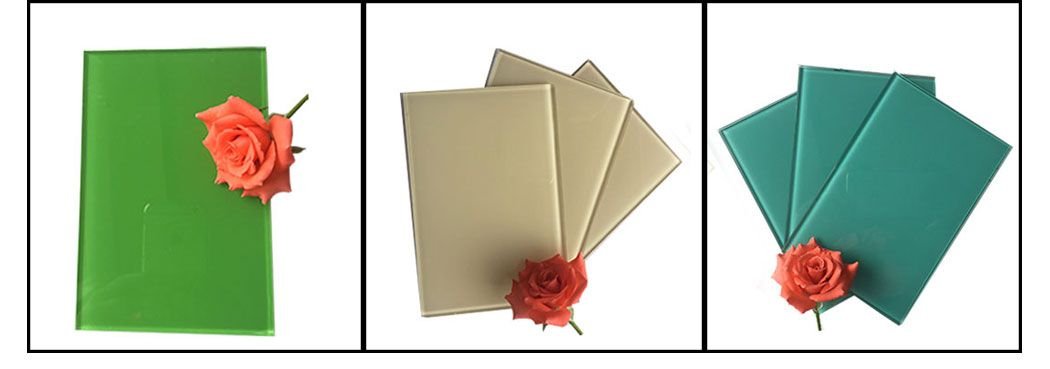

Colour: White, black or sample-matched colour; RAL reference. A RAL number is a starting point; approve the glass sample.
Substrate: Clear or low-iron glass; heat treatment as specified. Glass tint can alter the perceived paint colour.

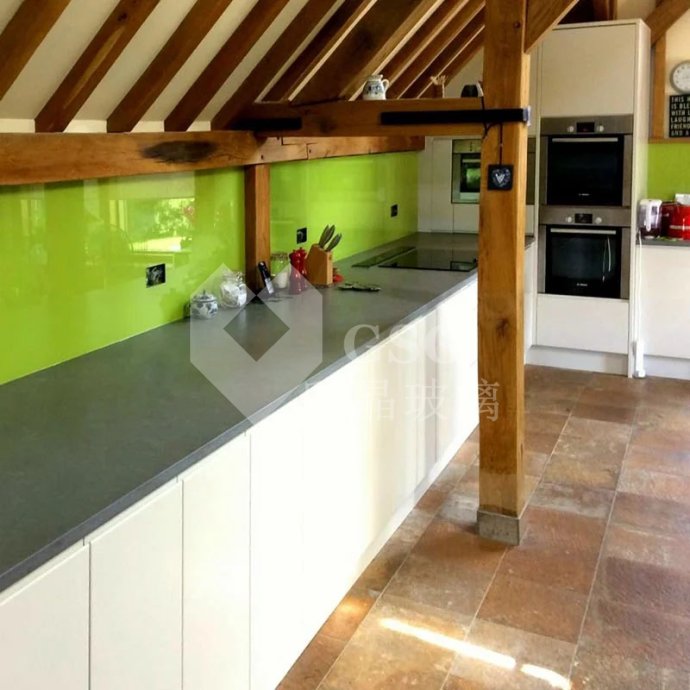

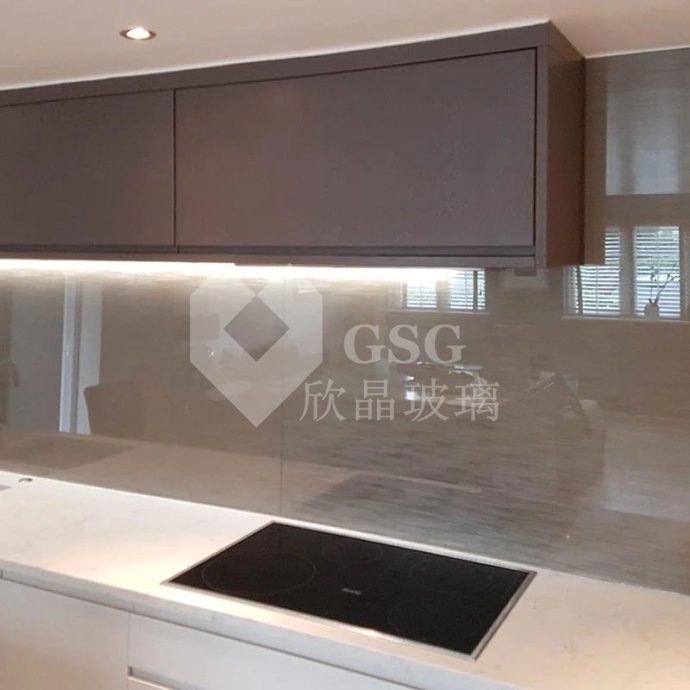

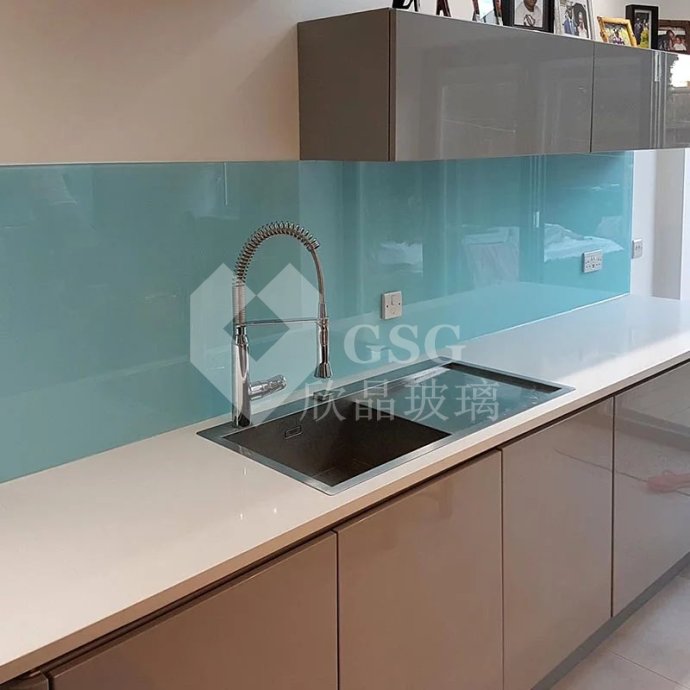

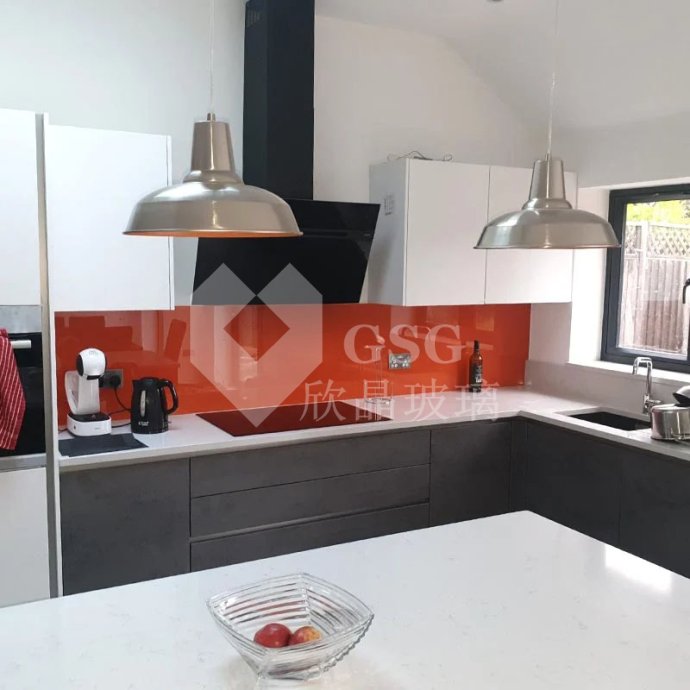

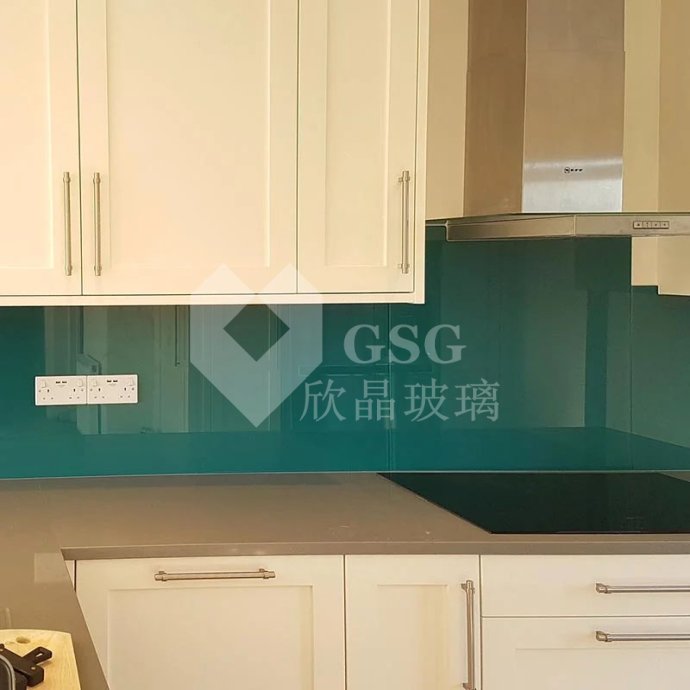

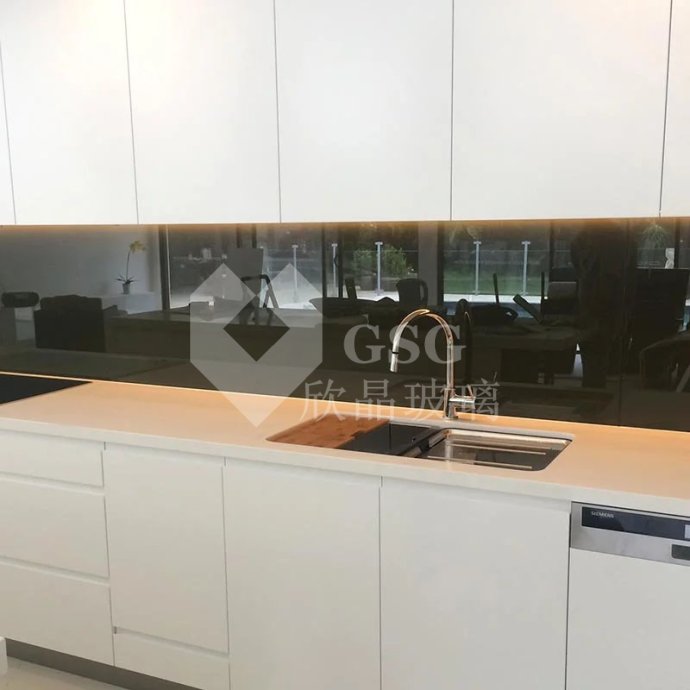

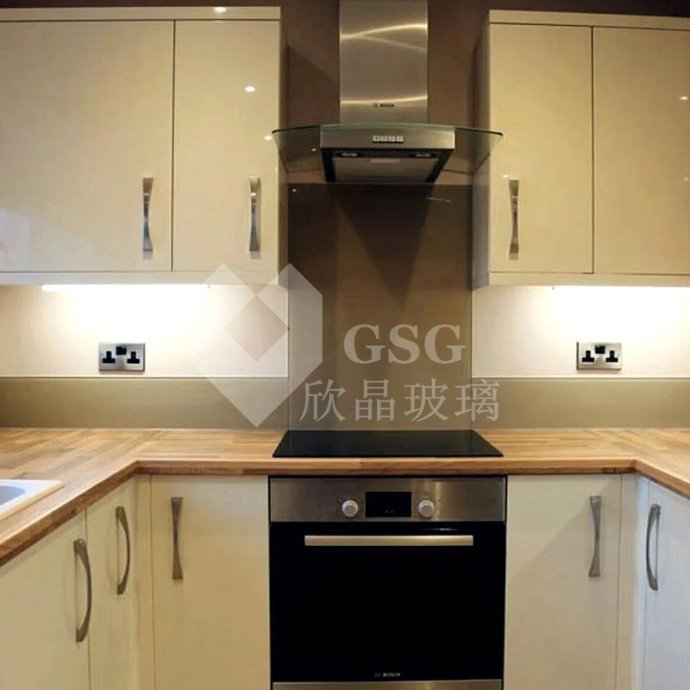

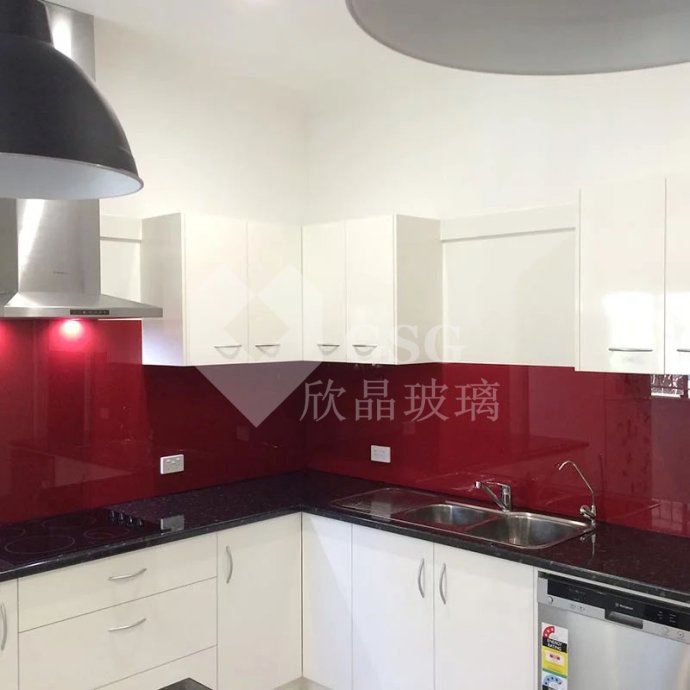

Back-painted glass combines a glass viewing face with an opaque colour layer on the reverse side. Globalstar Glass reviews decorative panel enquiries for wall cladding, furniture and cabinet applications. The substrate, coating chemistry and curing route must be defined: decorative back paint and fired ceramic enamel are different specifications and should not be described interchangeably.
Illustrative product concept and material details; not a completed-project photograph or test evidence. Final construction follows the approved order.
Examples support quotation discussions. Confirm availability, production feasibility and the final specification before ordering.
| Item | Reference specification | What to confirm |
|---|---|---|
| Thickness references | 4 / 5 / 6 / 8 / 10 / 12 mm | Choose for the application, support and coating process. |
| Sheet examples | 1830 × 2440; 2140 × 3300 mm | Confirm available substrate and coating dimensions. |
| Finished panel examples | 600 × 1200 or 1000 × 2000 mm | Final sizes and cut-outs follow approved drawings. |
| Colour | White, black or sample-matched colour; RAL reference | A RAL number is a starting point; approve the glass sample. |
| Substrate | Clear or low-iron glass; heat treatment as specified | Glass tint can alter the perceived paint colour. |
| Installation details | Polished edges, holes and compatible bonding | Confirm backing protection, adhesive and site exposure. |
Review a sample using the chosen glass thickness, paint and intended lighting. Low-iron substrate may be considered for pale colours where edge or face tint matters. Define acceptable variation and retain a control sample for adjoining panels and repeat orders.
Confirm whether the requirement is decorative lacquer, a particular water-based system or fired ceramic enamel. Ask for relevant coating data instead of assuming universal heat resistance, exterior durability or certification. Complete machining at the appropriate stage, with heat-treatment compatibility agreed before production.
Provide cut-outs for sockets, handles or hardware on dimensioned drawings. Protect the colour layer from incompatible adhesives, sealants and abrasive contact. Discuss moisture, temperature, edge sealing and substrate support for the installation environment.
The workshop includes one screen-printing line and glass cutting, edging and tempering equipment. Painted-panel throughput is planned separately around the chosen coating, sample approval and curing process; the printing line is not a guaranteed capacity for every paint system. Confirm colour-batch quantity and lead time after sample acceptance.
Separate viewing faces, protect painted backs and edges, and identify colour, batch and panel orientation. Agree packing materials compatible with the selected coating.
Send colour code or sample, glass substrate and thickness, dimensions, quantities, holes and cut-outs, edge finish, installation conditions and destination.
Send your specifications to Globalstar Glass for technical and commercial review.
Related products: low-iron glass and screen-printed glass.
No. Back-painted panels use an opaque reverse coating; traditional stained-glass constructions are different.
Use the code as an enquiry reference and approve a physical sample viewed through the selected glass.
No. The coating and heat-treatment sequence must be compatible; agree the manufacturing route first.
No. Confirm compatibility with the paint, backing protection and installation conditions.
Exterior suitability depends on the specific coating and complete installation; request relevant evidence.
